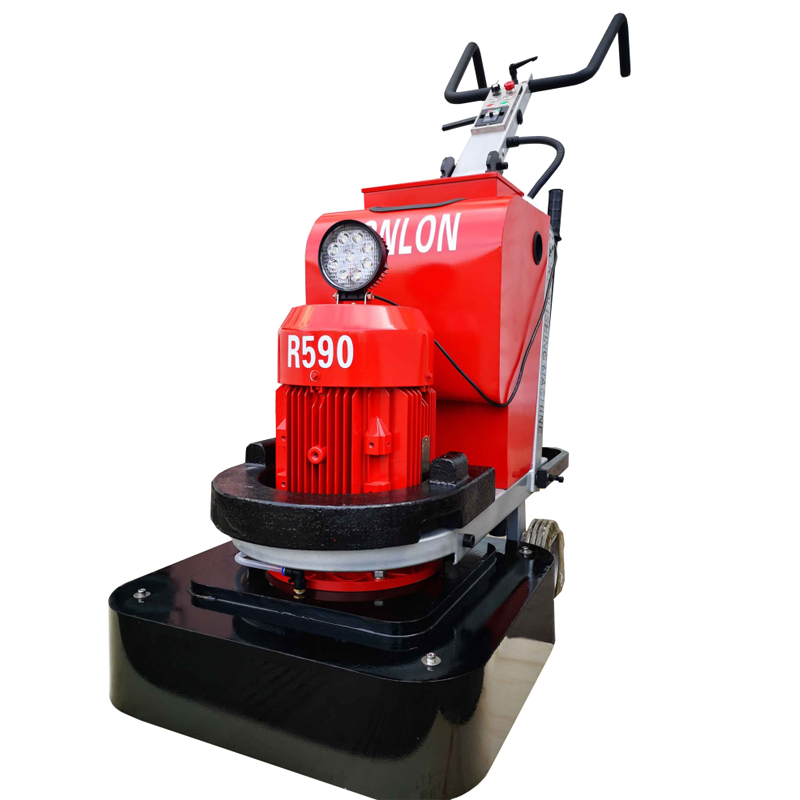

R590 concrete grinding and polishing machine
Concrete grinding and polishing machine is a machine specially designed for processing concrete floors, and it is an indispensable equipment in construction sites and stone processing. The machine has the characteristics of high efficiency, low cost and high quality.
The concrete grinding and polishing machine is designed with a square head chassis, which makes the equipment more flexible and convenient, and can handle areas with different angles and ground heights. The square head chassis can also adjust the height and pressure of the grinding disc to ensure the uniformity and quality of ground treatment.
More details
R590 concrete grinding and polishing machine with price is a powerhouse for the contractor looking to

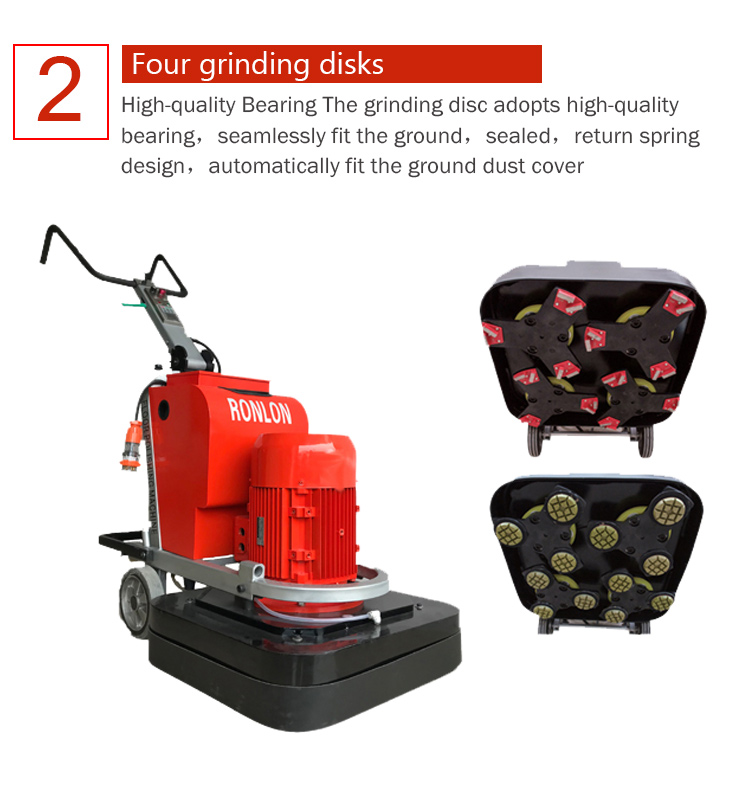

get the best bang for the buck in the surface prep and polishing industry. With its four gear driven
heads equipped with Polishing System's aircraft quality aluminum magnetic plate system, not leave
trace on floor when the four square plates square cross to work。
Model | R590A | R590B |
Voltage | 380-440V 3 phase | 220-240v 1 phase |
Motor | 10ph(7.5kw) | 10ph(7.5kw) |
Inverter | 10ph(7.5kw) | 15ph(11kw) |
Working width | 590mm | 590mm |
Rotating Speed | 300-1800RPM | 300-1800RPM |
Tools Holder Diameter | 310MM*4 | 310MM*4 |
Water Tank | 26L | 26L |
Weight | 230KG | 230KG |
Extra weight | 1*30KG | 1*30KG |
Packing Sise | 1250*650*1130mm | 1250*650*1130mm |
Working video:
Customer cases
Ronlon in WOC
