Product Description

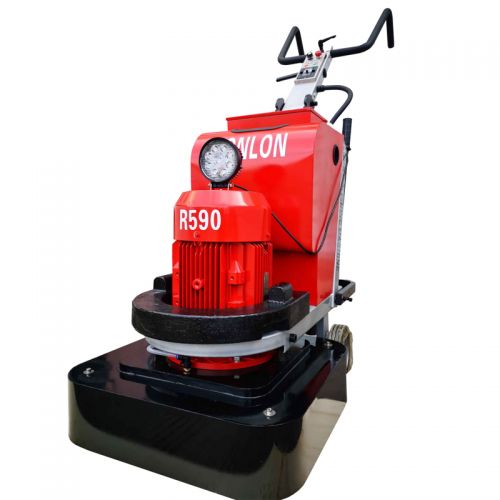

R590 High quality wet and dry grinder polisher can cut deeper after running, can be used for uneven ground, super hard ground, good at all kinds of metal diamond grinding. Its square - headed gearbox is more aggressive than other machines.
We have been working on floor grinders for more than 15 years. R590 and R700 square head grinders are constantly upgraded to improve quality and ensure customer satisfaction.
Parameters
Model | R590 |
Voltage | 380V-440V 3Phase |
Motor | 11KW (15HP) |
Inverter | 11KW(15HP) |
Working Width | 590mm |
Rotating Speed | 300-1800RPM |
Disc Diameter | 380mm*4 Water |
Weight | 280KG |
Packing size (mm) | 1130*740*1250 |
Features
Planetary disc
Gear driven
Adjustable handle
Large diameter side leakage preventing filter type injection nozzle.
New disply panel.You may easy to see voltage,HZ,electric current,rotating speed and working time while working.
With four gear driven heads,not leave trace on floor when the four square plates square cross to work.

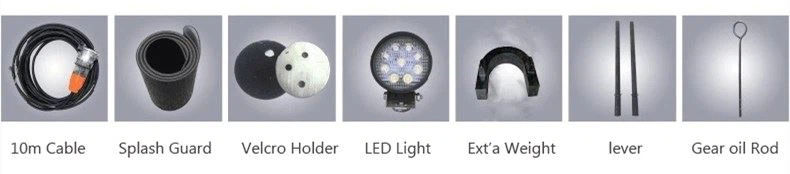

Details
![]() |
![]() |
LED light | Additional weight |
![]() |
![]() |
Regulating handle | The power plug |
|
Our service
We have 2 year warranty for motor, inverter, and gear box during this time, we wil send you, the broken parts for free if you have any trouble
If there is any problem with the machine beyond the warranty period, please prolide the malfunction pictare' Sriovideo in time. We will solve the problem for you linthe first time. sales department and technical department will give you a good support.
if the user cannot understand the words and pictures we provided to deal with the machine failure, we will instruct video until the user's machine problem is completely solved
