Concrete Floor Grinding Machine

Name: Concrete Floor Grinding Machine
Brand: RONLON
SKU: Concrete Floor Grinding Machine
Availability: InStock
Rating: 5.00 (1 reviews)

USD

1) FWD&REV rotating direction prolong the service life of abrasive, and optimize the grinding effect.
2) Variable speed to grind rough floors by slowing down the grinding heads to keep them from bouncing which will stop them from cutting. By speeding up the grinding heads you can polish and burnish the floor with the proper tooling. Variable speed also allows you to work on marble and granite floors.
3)With the red emergency switch supply safe always for you.

SKU: Concrete Floor Grinding Machine

MPN: RONLONR780-3

Brand: RONLON

Product Description

R780-3 concrete floor grinding machine is the machine's revolution leads four grinding heads running in different directions,offsetting the traction effectively between the grinding heads to make the operation smooth and easy.The work area between each head enhances the pads to effectively run the operation,this planetary grinder is the ideal professional machine for large jobs.

Product parameters

Model	R680A	R680B	R780-3A	R780-3B
Voltage	380V-440V 3 Phase	220V-240V 3 or 1 phase	380V-440V 3 Phase	220V-240V 3 or 1 phase
Motor	7.5KW (10HP)	7.5KW (10HP)	11KW (10HP)	11KW (15HP)
Inverter	11KW(15HP)	11KW(15HP)	11KW(15HP)	15KW(15HP)
Working Width	680mm	680mm	780mm	780mm
HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Rotating Speed	300-1800RPM	300-1800RPM	300-1800RPM	300-1800RPM
Disc Diameter	220mm*4	220mm*4	250mm*3	250mm*3
Water Tank	26L	26L	32L	32L
Weight	230KG	230KG	300KG	300KG
Additional Weight	30KG	30KG	25KG	25KG
Packing size (mm)	10807101200	10807101200	11008201250	11008201250

Features

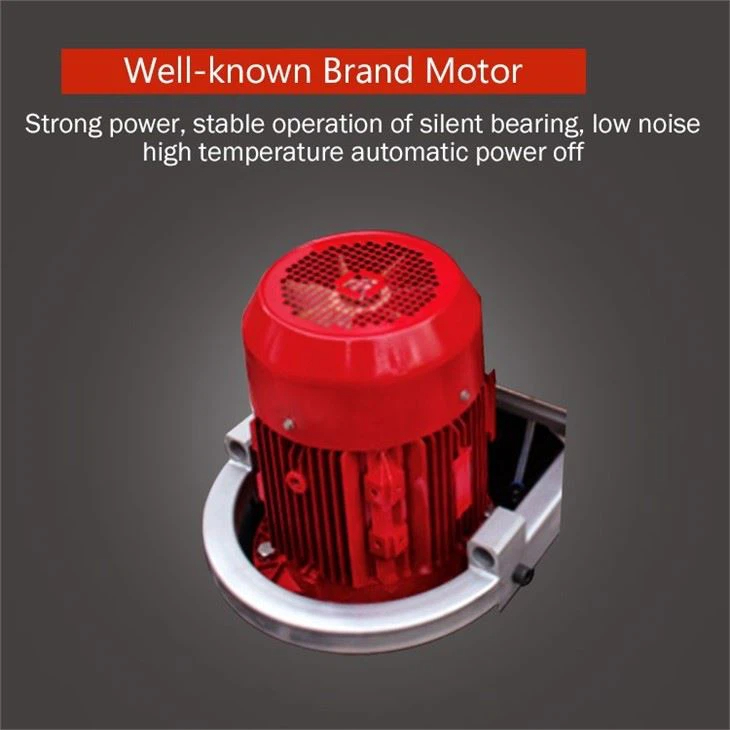

Well-known Brand Motor :Strong power,stable operation of silent bearing,low noise,high temperature automatic power off.
High-quality Bearing:The grinding disc adopts high-quality bearing,seamlessly fit the ground,sealed,

return spring design,automatically fit the ground dust cover.

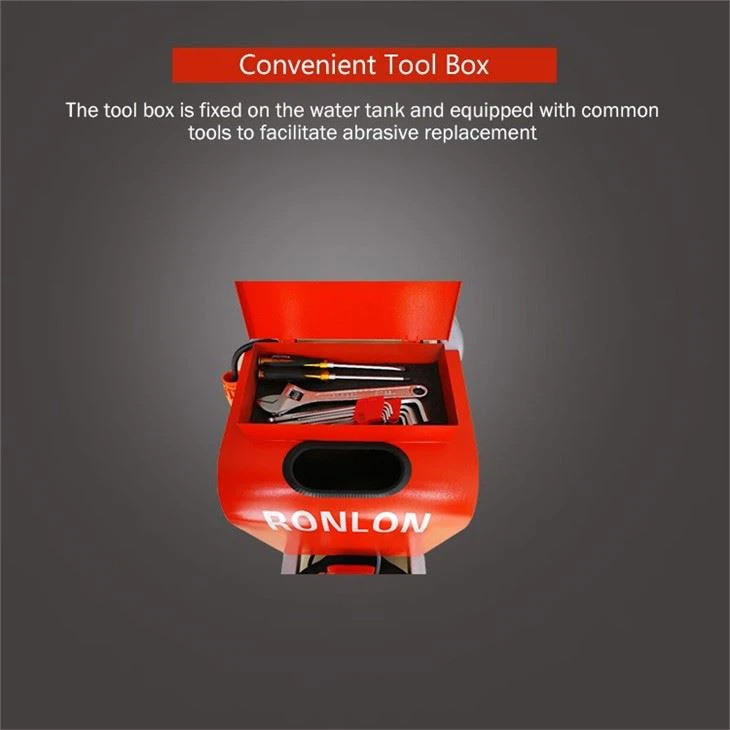

Convenient Tool Box:The Concrete Floor Grinding Machine tool box is fixed on the water tank and equipped with common tools to facilitate abrasive replacement.
Flexible Handle :The handle is adjustable and foldable for easy operation and ransportation.

Details

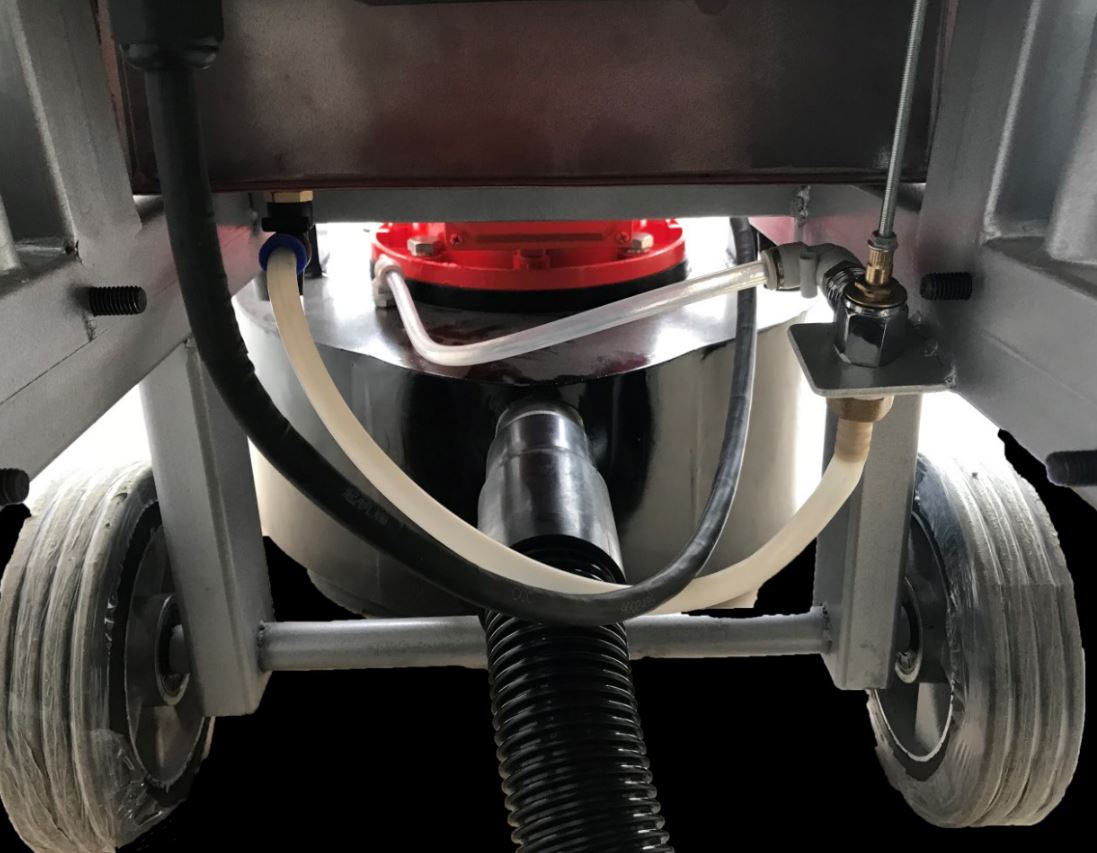

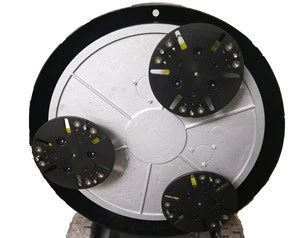

Planetary Disk	Vacuum Connector

Super IE 2 Motor	Ronlon Tool Box

Ronlon's Service

We have 2 year warranty for motor, inverter, and gear box during this time, we wil send you, the broken parts for free if you have any trouble.

If there is any problem with the machine beyond the warranty period, please prolide the malfunction pictare"Sriovideo in time. We will solve the problem for you finthe first time. Obe sales department and technical department will give you a good support.
the user cannot understand the words and pictures we provided to deal with the machine failure, we will instruct video until the user's machine problem is completely solved.
We also provide technical support if you need during doing the floor epoxy and coatings. In this way, will save your cost and diamond tools.
