1.Adjustable handle can fit any operator.
2.Foldable handle make transport easier.
3.The control Panel is easy to understand and operate could call it "fool operation'All the buttons on panel are emergency stop, speed switch,starting switch ,which are Schneider.
Product Description

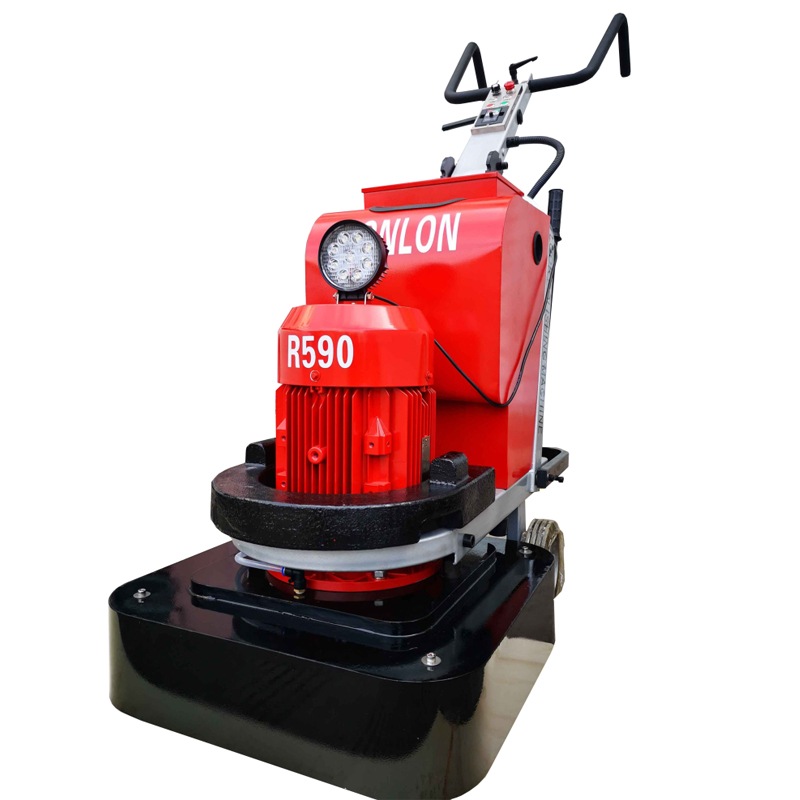

R590 High-quality wet and dry grinder polisher can cut deeper after running, can be used for uneven ground, and super hard ground, good at all kinds of metal diamond grinding. Its square-headed gearbox is more aggressive than other machines.
We have been working on floor grinders for more than 15 years. R590 and R700 square-head grinders are constantly upgraded to improve quality and ensure customer satisfaction.
Parameters
Model | R590 |
Voltage | 380V-440V 3Phase |
Motor | 11KW (15HP) |
Inverter | 11KW(15HP) |
Working Width | 590mm |
Rotating Speed | 300-1800RPM |
Disc Diameter | 380mm*4 Water |
Weight | 280KG |
Packing size (mm) | 1130*740*1250 |
Features
Planetary disc
Gear driven
Adjustable handle
Large diameter side leakage preventing filter-type injection nozzle.
New display panel. You may easily see voltage, HZ, electric current, rotating speed, and working time while working.
With four gear-driven heads, do not leave traces on the floor when the four square plates cross to work.
Details
![]() |
![]() |
LED light | Additional weight |
![]() |
![]() |
Regulating handle | The power plug |
|
Our service
We have a 2-year warranty for the motor, inverter, and gearbox during this time, we will send you, the broken parts for free if you have any trouble
If there is any problem with the machine beyond the warranty period, please provide the malfunction picture' Sriovideo in time. We will solve the problem for you in the first time. sales department and technical department will give you a good support.
if the user cannot understand the words and pictures we provided to deal with the machine failure, we will instruct video until the user's machine problem is completely solved
